Dust off those classic red and blue 3D glasses and learn how add a retro anaglyph 3D effect to your text using Photoshop's Blending Options, along with a couple of ways to customize it!

In a previous tutorial, we traveled back in time to the Golden Age of 3D movies and learned how to add a retro red and blue 3D effect to a photo. This time, I show you how to add the same classic effect (officially known as anaglyph 3D) to text!

As we'll see, creating this 3D text effect is easy thanks to Photoshop's Blending Options. And once the main effect is done, I'll show you a couple of variations you can make, including how to create the same effect with different colors!

I'm using Photoshop 2021 but any recent version will work.

Here's what the final 3D effect will look like:

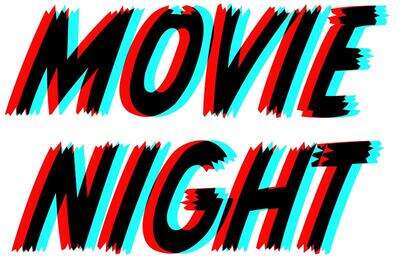

The anaglyph 3D text effect.

Let's get started!

Download this tutorial as a print-ready PDF!

The document setup

I've gone ahead and created a new Photoshop document with a white background, and I've added some black text in front of it (the words "MOVIE NIGHT").

For best results, you'll want to use the same colors (white for the background and black for the text).

Any font for work, but since this red and blue 3D effect was most often used with old horror movies, I'm using a font called CC Monster Mash from Adobe Fonts:

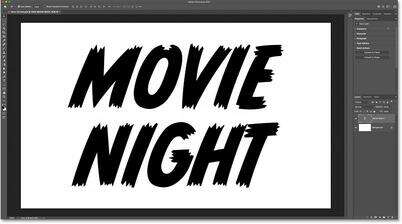

The initial Photoshop document.

Step 1: Make two copies of the text

We'll start by making two copies of the text, one for the red color in the 3D effect and the other for blue.

In the Layers panel, select your type layer:

Clicking on the type layer.

And drag the layer down onto the Add New Layer icon at the bottom:

Making the first copy of the text.

Then click on the copy of the type layer that appears above the original and drag it onto the Add New Layer icon:

Making the second copy of the text.

We now have the original type layer on the bottom and two copies above it:

The Layers panel showing three type layers in total.

Step 2: Open Photoshop's Blending Options

We'll use the top copy to add the color red to the effect and the copy below it to add blue.

With the top copy selected, click the fx icon at the bottom of the Layers panel:

Clicking the Layer Effects icon.

And choose Blending Options from the top of the list:

Choosing "Blending Options".

Step 3: Turn off the Red channel

The Layer Style dialog box opens, and in the Advanced Blending section is an option called Channels with three checkboxes, R, G and B. These are the Red, Green and Blue channels that Photoshop mixes together to create all the colors we see in the image.

By default, all three channels are turned on because that's normally what we want. But we can use the checkboxes to turn off any channels we don't need on the active layer. And this is how we'll create the 3D effect:

The R, G and B channel checkboxes.

Now because we're working with black text as opposed to white, the channels that need to be turned off are the opposite of what you would expect.

For example, to add red to the 3D effect, turn off the Red channel by unchecking it. Leave the Green and Blue channels turned on:

Turning off the Red channel on the type layer.

Step 4: Close the Layer Style dialog box

When you're done, click OK to close the Layer Style dialog box:

Closing the dialog box.

Step 5: Select the Move Tool

Now even though the Red color channel has been turned off, nothing will happen until we move the text left or right to offset it from the original.

To move the text, select the Move Tool from the toolbar:

Selecting the Move Tool.

Step 6: Set the View mode to 100%

But before moving it, go up to the View menu in the Menu Bar and make sure the 100% zoom level is selected. This allows you to nudge the text left or right by one pixel at a time:

Going to View > 100%.

Step 7: Offset the text to the left

Then use the left arrow key on your keyboard to nudge the text away from the original. Each time you press the arrow key, you'll move the text one pixel further to the left. Or to move the text by 10 pixels at a time, hold your Shift key as you press the left arrow key.

And notice that the text appears red in the areas that are offset from the original, while the original text remains black. In my case, I've moved the text 30 pixels to the left.

Make sure you remember how far you moved the text because we're going to move the other copy by the same amount but in the opposite direction:

Moving the text to the left adds red to the 3D effect.

Step 8: Select the first copy of the text

Back in the Layers panel, click on the first copy of the text (the one directly above the original type layer) to select it:

Selecting the first copy.

Step 9: Open the Blending Options

Then click the fx icon:

Clicking the Layer Effects icon.

And once again choose Blending Options to reopen the Layer Style dialog box:

Choosing "Blending Options".

Step 10: Turn off the Green and Blue channels

Up to this point, I've been calling our retro 3D effect a "red and blue" effect. But the "blue" color is actually cyan, which is the opposite of red.

To add cyan, leave the Red channel turned on but turn the the Green and Blue channels off. Again, this may be the opposite of what you would expect but it's because we're working with black text as opposed to white:

Unchecking the Green and Blue channels.

Step 11: Close the Layer Style dialog box

Click OK when you're done to close the Layer Style dialog box:

Closing the dialog box.

Step 12: Offset the text to the right

Then with the Move Tool still active in the toolbar, use the right arrow key on your keyboard to nudge the text to the right one pixel at a time, or hold Shift as you press the arrow key to nudge it by 10 pixels at a time. You want to move the text by the same amount that you moved the red text. In my case, it was 30 pixels.

And this time, the text appears cyan in the areas that are offset from the original, creating our retro 3D effect:

Moving the text to the right adds cyan to the effect.

See also: Add a Long Shadow to your text with Photoshop!

Variation 1: Turn off the original text

At this point, the main 3D text effect is complete. But there's a couple of easy ways to create variations of it.

One way is to turn off the original type layer by clicking its visibility icon in the Layers panel:

Turning off the original text.

This puts the focus more on the red and cyan colors in the effect, with the black appearing only in areas where red and cyan overlap. You may need to use the left and right arrow keys on your keyboard to adjust the spacing between the red and cyan type layers. In my case, I moved them a bit closer together:

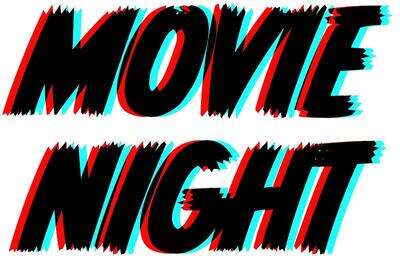

The 3D effect with the original text turned off.

Variation 2: Change the colors in the effect

Another easy variation is to change the colors in the effect. You still want colors that are opposites of each other, but instead of red and cyan, another popular combination is green and magenta.

Step 1: Change the red color to green

In the Layers panel, double-click on the Blending Options icon on the top type layer (the one that holds the red part of the effect). Or if you can't see the Blending Options icon, double-click on any empty gray part of the layer:

Reopening the Blending Options for the red text.

Then in the Layer Style dialog box, change the red color to green by turning the Red channel on, the Green channel off and the Blue channel on. Click OK to close the Layer Style dialog box, and the red color in the effect is now green:

R=on, G=off, B=on for green.

Step 2: Change the cyan color to magenta

Back in the Layers panel, double-click on the Blending Options icon (or on any empty gray area) for the type layer that holds the cyan part of the effect:

Reopening the Blending Options for the cyan text.

Then to change cyan to magenta, turn the Red channel off, the Green channel on and the Blue channel off:

R=off, G=on, B=off for magenta.

Click OK when you're done to close the Layer Style dialog box.

And we now have a green and magenta 3D effect for something a bit different:

The same effect with different colors.

And there we have it! That's how to create a retro 3D text effect with Photoshop!

For more retro goodness, check out my tutorial on how to create 80's retro text, or see my complete list of Photoshop text effects tutorials. And don't forget, all of our tutorials are available to download as PDFs!
